Acrylic Resin Fabrication

Let us take your project from panel to perfection. From complex projects to simple finishing details, our services include joining and seaming, custom and standard forming, edge detailing, etching and custom CNC cutting.

fabrication acrylic
fabrication acrylic



Edge Detail & Finishing

Utilize eased or chamfered edges, or even put a radius on the panel. Find the ideal finish for your edges, including sanded, flame-polished, or solvent edge.

Acrylic Resin Fabrication

Standard & Custom Forming Formed resin panels are perfect as decorative cladding for walls and ceilings or podiums; or for use as a sculptural element in any space. Luxface offers a number of standard complex curves, as well as completely custom solutions.

Flat & Angled Seams

Choose from tongue and groovef wavy, miter or spline joints. Our experts can help you determine the best joinery for your application and material selection.

Etching

Etch lettering or a logo into the surface of your material to combine the usefulness of signage with the colorful luminosity of our resins to make a memorable impression. CNC etching and sandblasting create a beautiful frosted look.

Acrylic Resin Fabrication

Specification

Frost Cut

Environment Graphics

Acrylic Resin Fabrication

Capabilities

Specify nearly any 2D shape, slots, radii, and holes in most materials with a tolerance of 0.03″. Standard Luxface lead times apply

MATERIAL SPECIFIC CAPABILITIES

Acrylic Resin Fabrication

Luxtone and Luxtone XT

  • any gauge
  • sheet capacity for cutting
  • virtually any shape, tight tolerances and radii
  • can be specified with PANTONE colors

Luxform

  • any gauge
  • 4′ x 8′ or 4’x9.5,sheet capacity for cutting
  • virtually any shape, tight tolerances and radii

Polished Cut



  • Can be specified with all Luxform patterns.

Polished Cut has a smooth high-gloss edge. The edge finish is consistent from part to part. Polished Cut is a very cost effective way to cut and polish shapes.

Capabilities

Specify nearly any 2D shape, slots, radii, and holes in most materials with a tolerance of 0.03”. Standard Luxface lead times apply.

MATERIAL SPECIFIC CAPABILTTIES

Acrylic Resin Fabrication

Luxtone

  • up to 1/2″ gauge 48″ x 96″ sheet capacity for cutting
  • virtually any 2D geometry -can be specified with PANTONE colors

Luxform

  • up to 1/4″ gauge
  • 48″ x 96″ sheet capacity for cutting
  • virtually any 2D geometry

Acrylic Resin Fabrication

Laser Etch

Specify Laser Etch to engrave smooth graphics at ten thousandths of an inch depth.

MATERIAL SPECIFIC CAPABIUTIES

Luxtone

  • any gauge
  • 44″ x 48″ sheet capacity for etching area
  • virtually any 2D geometry

can be specified with PANTONE colors



Luxform Fabrication

Edge Finishing

For installations where panel edges are exposed, upgrade from the standard saw cut edge finish. Several edge finishing



Saw Cut Standard edge finish

Sanded Edge Finish 400 grit sand paper provides a consistent, brushed look.

Flame Polished Edge Finish – Sanded finish plus a flame-applied glass-look finish.

Solvent Finish – A solvent-applied finish that creates a satin appearance.



Edge Details

When using Luxform in horizontal surfaces like table tops or bar tops, or in vertical solutions such as unframed doors, consider Luxface’s edge detail options.



Flat Seams

In an installation where multiple panels need to be pieced together to form larger panels, choose from several flat seaming options for Luxform panels.



Tongue and Groove Seam / Tongue and Groove Reveal Seam – Offers the strongest structural support.

Wavy Bit Joint Offers a clean aesthetic with minimal visibility. The wavy joint is frequently used with factory adhesive seaming to create a structurally sound 8×8 panel out of two 4×8 panels.

Spline Joint Use this for neutral light colors (especially white) with radius panels.



Angled Seams

Luxface Fabrication offers two standard angled seams for box-like applications such as light boxes, showcase boxes, planters, countertop dropdown ledges and aprons, and return-to-wall panels.



Forming

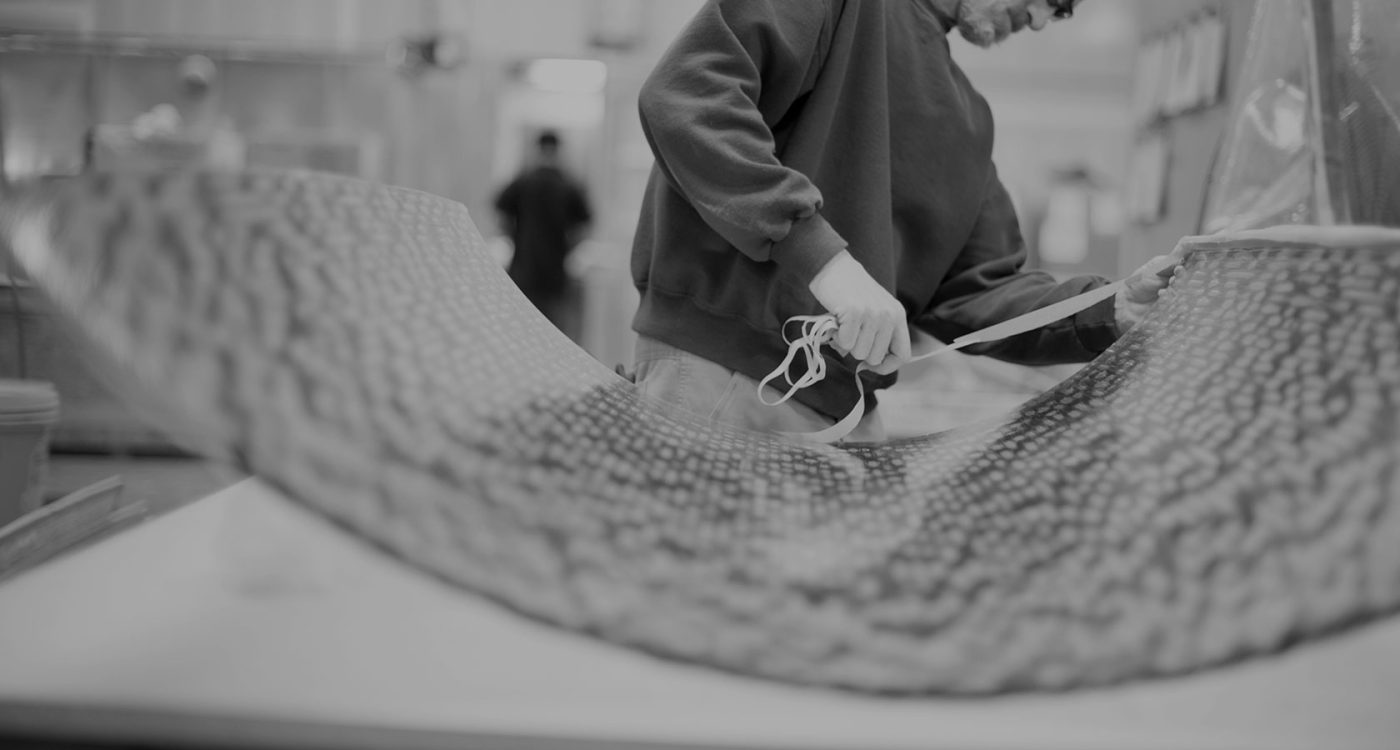

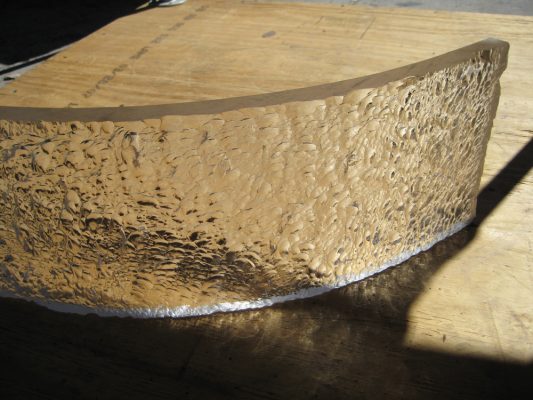

Luxform is ready to be formed to meet your design needs. Formed Luxform is perfect as decorative cladding for walls and ceilings or podiums. Formed Luxform is a perfect sculptural element in any space. Luxface offers a number of standard complex curves.



Luxface Luxform can also be formed or shaped in almost limitless custom variations to realize your specific vision.



Luxtone Fabrication

Edge Finishing

For installations where panel edges are exposed, upgrade from the standard saw cut edge finish. Several edge finishing options for Luxtone are available.

Saw Cut Standard edge finish.

Polished Edge Finish – Superfine sanded finish with 1200 grit paper combined with a polished buffing process. The result is a clear appearance with a soft sheen.

Renewable Matte 220 grit sand paper provides a consistent, brushed look.

*AII Luxtone panels come standard with a saw cut edge finish.

Edge Details

When using Luxtone in horizontal surfaces such as table tops or bar tops, consider Luxface’s edge detail options. As a standard, Luxtone comes with square edges. The following options are available:

standard, Luxtone comes with square edges. The following options are available:



Eased Edge A soft, very subtle bevel.

Chamfer Edge For a distinct design choice.

Radius Edge For a smooth, rounded edge.

*AII Luxtone panels come standard with square/sharp edges

Structural Seams

In an installation where multiple panels need to be pieced together to form larger installations, such as long counters, Luxtone can be joined using our structural seams.



Light Seams

Light seams are a choice option for box-like applications like light boxes, showcase boxes, planters, countertop dropdown ledges and aprons, and return-to-wall panels.



Forming

form Luxtone can be formed into simple, linear curves. Gently formed Luxtone is ideal for receptionist and welcoming areas.

Etching

Etch lettering or a logo into the surface of Luxtone. This service combines the usefulness of signage with the design factor of Luxtone color luminosity to make a memorable impression.

  1. CNC etching + sandblasting to create a beautiful frosted look. Interior only.
  2. CNC + sandblasting + painting to create a colored depth perception through text or logos.
  3. Laser etching. Our laser can etch Luxtone to create a white frosted background. The precision of the laser also creates nice sharp inside corners that a CNC cannot achieve.

Field Seam Kit

Luxface has created a field seam kit that makes seaming our Luxtone materials onsite a very simple process. Our kit comes with fully detailed instructions, tools, and adhesive to seam onsite and can be reused again and again.

Luxface holds all capabilities of acrylic resin fabrication, we can make different level products with different technology and surface treatments.
